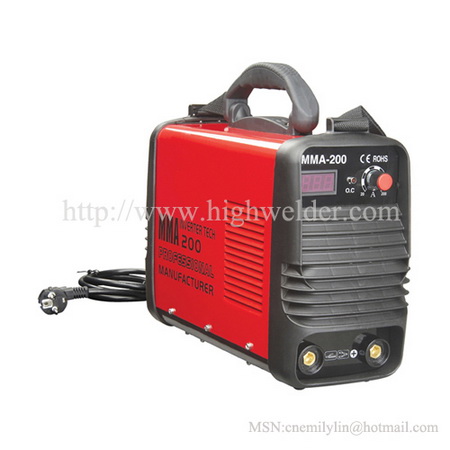

Product Name : | Inverter DC MMA Welder/ARC Welding Machine (MMA-200DIS-B22) |
| Product Origin : | China | |
| Product Category : | Industrial heating equipment | |
| More Products : | Click here! | |
| Contact Details : | (HIGH WELDING MANUFACTURE)WENZHOU LONGWAN FOREIGN TRADE CO.,LTD | |
| Product Code : | MMA-200DIS-B22 |
Plastic style-Inverter DC Display MMA welder ARC Welder/welding machine
Model:MMA-200DIS(B22)
1. Adopt with advanced MOS/IGBT inverter technology, save energy, protect the environment, light and compact, portable, accord with CE, EMC and LVD standards.
2. Current can be adjusted stepless, high efficiency.
3. Fan-cooled, automatic protection of over-voltage and over-current, thermostatic protection, moveable welding cable.
4. Strong welding permeability, less splash, good weld appearance, sound-proof.
5. Suit for all kinds of basic and acid electrodes.
6. Be able to long-distance weld all kinds of material, such as stainless steel, steel tungsten, titanium, nickel and other alloy material.
7. With complete accessories.
8. Carton box.
Specification |
MMA-200 |
MMA-250 |
Power voltage (V) |
220+10% |
220+10% |
Rated output volt.(V) |
28 |
30 |
Output current (A) |
10-200 |
10-250 |
Input capacity(KVA) |
7 |
8.8 |
No-load voltage(V) |
65 |
65 |
Housing Protection grade |
IP21 |
IP21 |
Insulation grade |
B |
B |
Duty cycle (%) |
60 |
60 |
Efficiency(%) |
85 |
85 |
Weight(kg) |
8 |
8 |
Dimensions(mm) |
440×220×320 |
440×220×320 |
